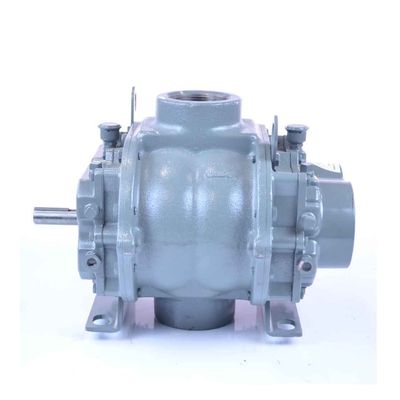

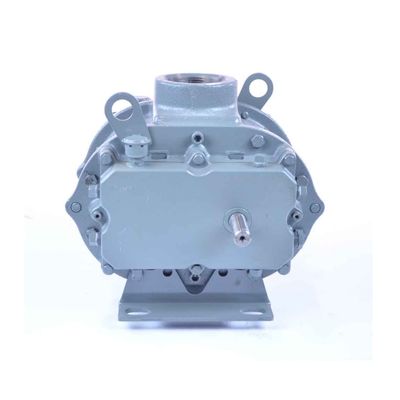

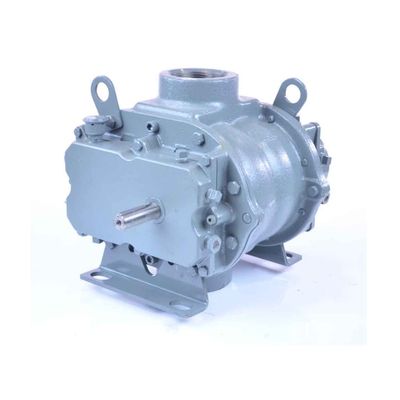

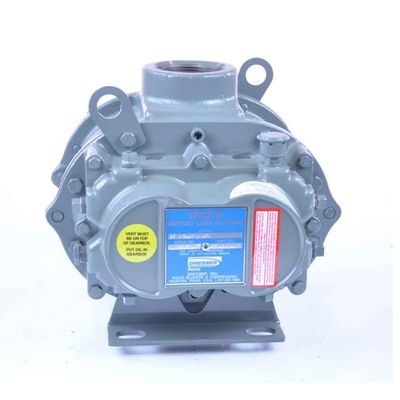

ROOTS™ 36 Universal RAI-J Blower
Model: 36 URAI-J
The ROOTS™ 36 URAI-J™ WHISPAIR™ blower features a rugged cast-iron casing with computer-designed reliefs for noise and shock suppression, precision-machined two-lobe impellers, ground steel shafts, carburized alloy steel timing gears, and oversized anti-friction bearings with cylindrical roller bearing support. Its grease-lubricated drive end, splash oil lubricated gear end, and Roots’ exclusive figure-eight gearbox design improve oil distribution, reduce vibration and pulsation, and extend bearing and gear life.
Technical Details
ROOTS™ 36 Universal RAI-J
Model: Roots Model 36 URAI-J®
Flow Range: to 330 CFM
Max Δ Pressure: 7 psi
Max Δ Vacuum: 15″ Hg
Maximum RPM: 3600
Minimum RPM: 1090
Max ΔT: 225˚F
Connection Size: 2.5″ FPT
Shaft Diameter: 0.75″
Drive End Lubrication: Grease
Gear End Lubrication: Oil
Required Oil for Gear End Horizontal Unit: 10.5 ounces
Required Oil for Gear End Vertical Unit: 8.5 ounces
Unit Weight: 112 pounds (50.9 kg)
36 URAI-J Blower Design & Construction Features
Detachable steel mounting feet
Rigid one-piece cast-iron casing
Anti-friction bearings
Splash oil lubricated spur timing gears
Straight precision-machined two-lobe impellers
Ground steel shafts
Standard pipe size connections
Cylindrical roller bearing for V-belt load resistance
Computer-designed cast relief for noise suppression
Lower vibration and reduced air pulsation design
Performance Advantages
Lower operational noise
Reduced air pulsation
Lower vibration levels
Extended bearing and gear life
Reliable continuous-duty operation
Improved airflow stability for industrial systems
