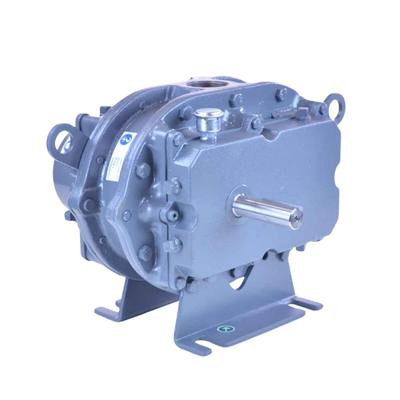

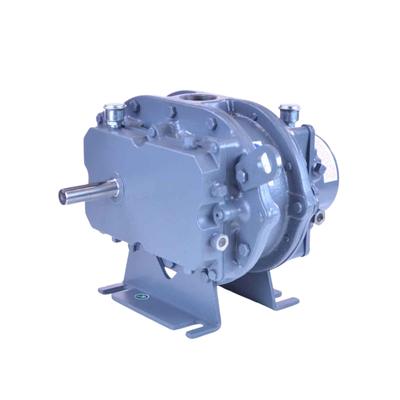

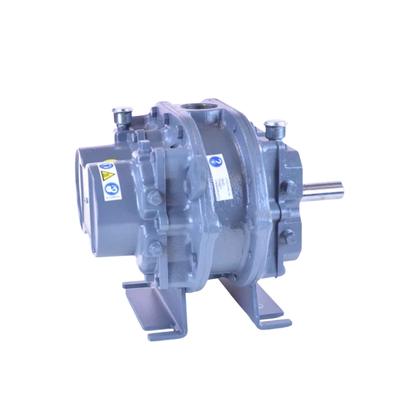

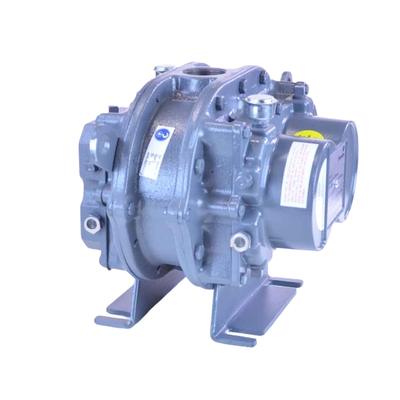

ROOTS™ 42 Universal RAI DSL

Model: 42 URAI DSL

The ROOTS™ 42 Universal RAI DSL rotary positive displacement blower is engineered for continuous-duty industrial air movement with dual splash oil lubrication on both the gear and drive ends, utilizing 14.5 ounces of gear-end oil and 10.8 ounces of drive-end oil in horizontal configurations. Featuring a rigid cast iron casing, precision-machined involute impellers, and Howden’s exclusive figure-eight gearbox design, the unit delivers reliable volumetric efficiency, enhanced oil distribution, and extended bearing life. Designed for OEM and replacement applications, the blower supports four drive shaft positions with detachable steel mounting feet for adaptable vertical or horizontal installation configurations.

Key Specifications

Max Flow

330 CFM

Max Pressure

15 psi

Max Vacuum

16" Hg

Maximum RPM

3600 RPM

Minimum RPM

848 RPM

Manufacturer

Roots

IO&M Manuals

Download

Literature

Download

Technical Details

Model: Roots Model 42 URAI DSL

Flow Range: to 198 CFM

Max Δ Pressure: 15 psi

Max Δ Vacuum: 16″ Hg

Max ΔT: 240˚F

Connection Size: 1.5″ FPT

Shaft Diameter: 0.875″

Drive End Lubrication: Oil

Gear End Lubrication: Oil

Required Oil Gear End Horizontal Unit: 14.5 ounces

Required Oil Drive End Horizontal Unit: 10.8 ounces

Required Oil Gear End Vertical Unit: 12.7 ounces

Required Oil Drive End Vertical Unit: 5.5 ounces

Unit Weight: 92 pounds (41.8 kg)

42 Universal RAI DSL Blower Design & Construction Features

Steel detachable mounting feet

Rigid one-piece cast iron casing

Anti-friction bearings

Splash oil lubricated spur timing gears

Splash oil lubricated drive end bearings

Standard pipe size connections

Balanced precision-machined bi-lobe impellers

Ground steel shafts

Cylindrical roller bearing at drive shaft for V-belt pull resistance

Two shaft-mounted oil slingers at drive end

Howden exclusive figure-eight gearbox design for improved oil distribution

3/8″ sight glasses for oil level confirmation

Accessories

Available accessories include driver packages, inlet and discharge silencers, relief valves, inlet filters, check valves, extended bases, V-belt drives, flexible couplings, drivers, and drive guards.

Warranty Information

ROOTS™ Universal RAI DSL blowers are backed by a 2-year warranty with an additional 6 months covering shipping and construction where applicable. ROOTS synthetic lubricants are recommended to maximize lubricant life and long-term blower reliability. Oil sight glasses are provided for accurate oil level monitoring during operation.
