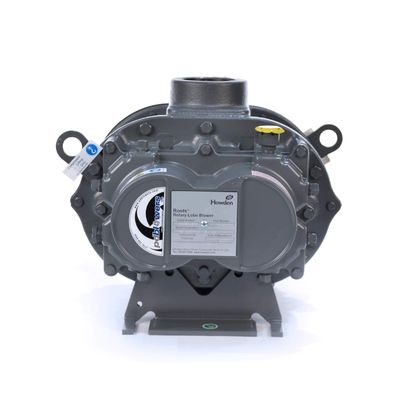

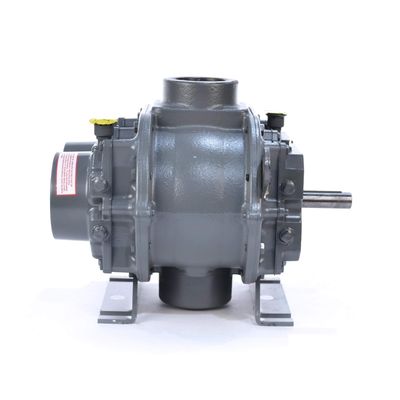

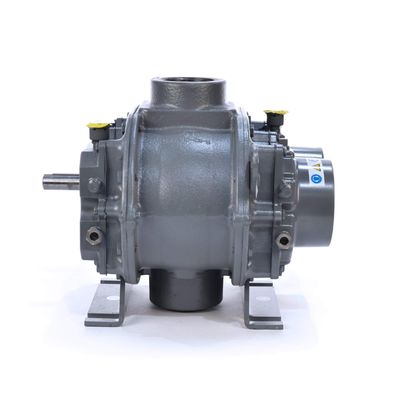

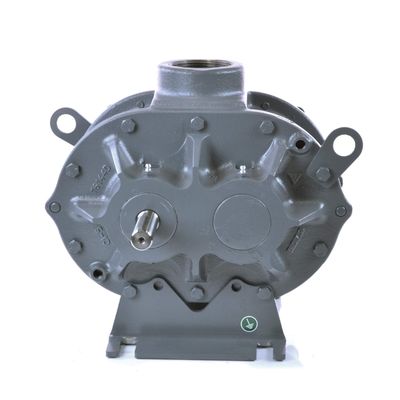

ROOTS™ 45 Universal RAI-J Blower

Model: 45 URAI-J

The ROOTS™ 45 URAI-J™ WHISPAIR™ blower is engineered with a rugged cast-iron housing and computer-designed internal reliefs that help minimize operational noise, airflow pulsation, and vibration in demanding industrial environments. Precision-machined two-lobe impellers, carburized alloy steel timing gears, and ground steel shafts maintain accurate rotor timing and smooth airflow delivery, while oversized anti-friction bearings with cylindrical roller bearing support improve stability under continuous-duty operation. Its grease-lubricated drive end, splash oil lubricated gear end, and ROOTS’ exclusive figure-eight gearbox design enhance lubricant distribution for improved thermal control, longer bearing life, and dependable long-term blower performance.

Key Specifications
Max Flow
395 CFM
Max Pressure
10 PSI
Max Vacuum
15″ Hg
Maximum RPM
3600 RPM
Minimum RPM
848 RPM
Maximum Temperature
225ËšF
Manufacturer
Roots
IO&M Manuals
Literature

Technical Details

ROOTS™ 45 Universal RAI-J
Model: Roots Model 45 URAI-J®
Flow Range: to 395 CFM
Max Δ Pressure: 10 psi
Max Δ Vacuum: 15″ Hg
Max RPM: 3600
Min RPM: 848
Max ΔT: 225˚F
Connection Size: 2.5″ FPT
Shaft Diameter: 0.875″
Drive End Lubrication: Grease
Gear End Lubrication: Oil
Required Oil for Gear End Horizontal Unit: 14.5 ounces
Required Oil for Gear End Vertical Unit: 12.7 ounces
Unit Weight: 119 pounds (54.1 kg)

45 URAI-J Blower Design & Construction Features

Detachable steel mounting feet
Rigid one-piece cast-iron casing
Anti-friction bearings
Splash oil lubricated spur timing gears
Straight precision-machined two-lobe impellers
Ground steel shafts
Standard pipe size connections
Cylindrical roller bearing for V-belt load resistance
Computer-designed cast relief for noise suppression
Lower vibration and reduced air pulsation design

Performance Advantages

Lower operational noise
Reduced air pulsation
Lower vibration levels
Extended bearing and gear life
Reliable continuous-duty operation
Improved airflow stability for industrial systems
