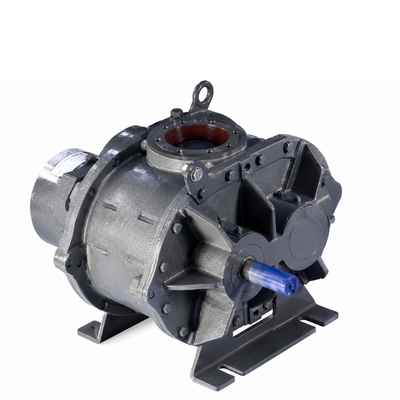

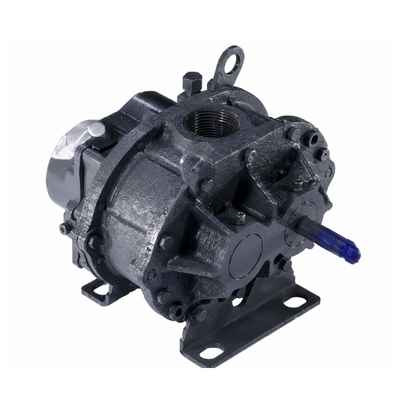

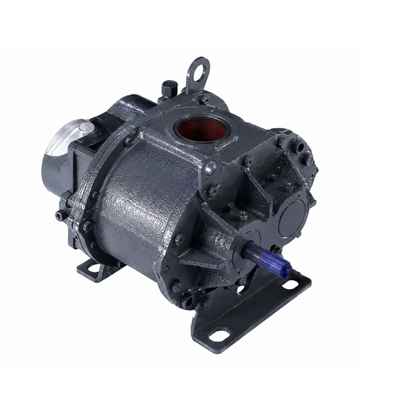

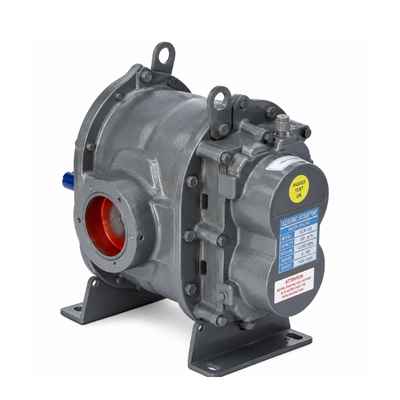

Roots⢠Universal RAI-J Whispair DSL Blowers
Roots⢠Universal RAI-J Whispair⢠DSL rotary blowers are available in 5 different models, specifically engineered to provide the longest life and quietest performance in the URAI series. This series features Frames 33J thru 56J and combines the innovative Whispair⢠design with a Dual Splash Lubrication (DSL) system to deliver superior reliability for demanding industrial blowers South Texas applications. These units are engineered with "universal" mounting feet, providing the flexibility to be installed in four different configurations to meet your specific facility layout.
Product Specifications
The Roots⢠Universal RAI-J DSL combines the proven Whispair⢠design with dual splash lubrication to deliver the longest service life and quietest operation in the URAI series. Available in five models across Frames 33J through 56J, each unit supports four mounting configurations thanks to universal mounting feet.
The center-timed design allows operation in either rotational direction. Both the drive end and gear end receive full oil lubrication, while Roots' exclusive "figure-eight" gearbox geometry optimizes oil distribution for maximum bearing and gear longevity. Sight glasses (3/8âł) are provided for accurate oil level confirmation.
The Whispair⢠feature reduces operating noise by approximately 3 to 5 dBA compared to a conventional unit running at equivalent conditions â a meaningful advantage in noise-sensitive industrial environments.
Frame Sizes: 33J thru 56J
These models are center-timed to support bi-directional rotation, allowing for greater versatility during installation. The rugged steel mounting feet are detachable, making it easy to adapt the unit for vertical or horizontal mounting and facilitating four different drive shaft positions.
- Flow Rates: 55 â 565 ICFM (94 â 960 mÂł/hr)
- Pressure: Up to 13 PSI (896 mbar)
- Vacuum: Up to 16 INHgV (539 mbar) (Dry)
- Horsepower: 0.5 â 37 BHP (0.4 â 28 kW)
The advanced Whispair⢠technology uses a computer-modeled cast relief to suppress noise and shock. This results in a reduction of discharge sound pressure by 3 to 5 dBA compared to standard rotary positive blowers.
- WHISPAIR⢠jet design for noise and pulsation reduction
- Noise reduction of approximately 3â5 dBA compared to conventional units
- Dual splash lubrication on both gear and drive ends
- Exclusive âfigure-eightâ gearbox design for improved oil distribution
- Sight glasses (3/8âł) for accurate oil level monitoring
- Detachable steel mounting feet for flexible installation
- Universal mounting (vertical or horizontal configurations)
- Four drive shaft positions: top, bottom, right, or left
- Center-timed design for bi-directional operation
- Rigid cast iron casing with computer-designed relief for shock suppression
- Carburized and ground alloy steel spur timing gears
- Anti-friction bearings with cylindrical roller bearings on the drive shaft
- Precision-machined cast-iron involute impellers
- Ground steel shafts
- Wastewater treatment
- Pneumatic conveying / material handling
- Industrial air systems
- Chemical and petrochemical processing
- General air and gas handling systems
Expert Support from Houstonâs Authorized Rotary Blowers Distributor
As an authorized distributor of Roots Whispair blowers for the South Texas region, ACFM provides end-to-end support for your air and gas handling equipment. Our specialists are available to assist with custom system selection, technical troubleshooting, and professional repair services.
Reach out to the ACFM team today to find the ideal Whispair DSL blower solution for your specific operational needs.
