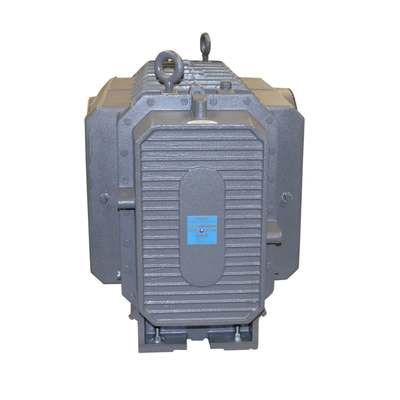

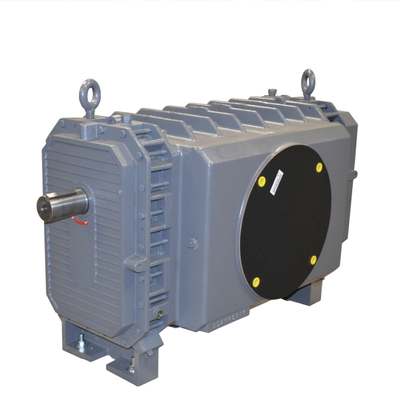

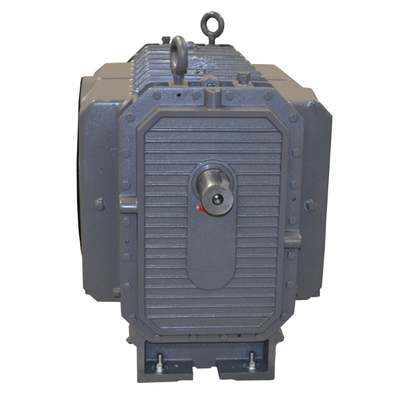

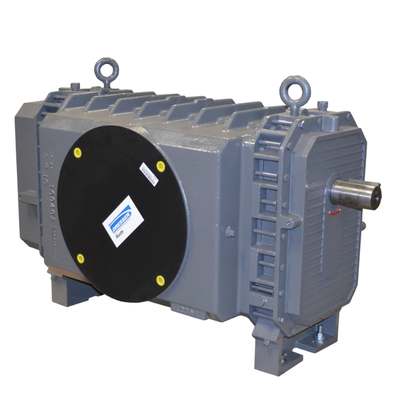

ROOTS™ RCS-J 832 WHISPAIR Rotary Positive Displacement Blower

Model: RCS-J 832

The Roots™ RCS-J WHISPAIR Rotary Positive Displacement Blower 832 model drives an incredible 5723 CFM capacity across intensive production facilities. This robust 2325-pound workhorse uses an ingenious jet layout inside the grey iron casing to balance internal pressures and reduce drag. Its heavy-duty components utilize precision thrust control alongside dual-end oil chambers, providing remarkably cool, reliable, and continuous airflow performance.

Key Specifications
Max Flow
5723 CFM
Max Pressure
10 PSI
Max Vacuum
16″ Hg
Maximum Speed
2250 RPM
Manufacturer
Roots
IO&M Manuals
Literature

Technical Details

The ROOTS™ RCS-J WHISPAIR series is designed for demanding industrial airflow applications where dependable performance matters every day. Built with durable ductile iron impellers, a rugged grey iron housing, precision alloy steel timing gears, and heavy duty roller bearings, these blowers are engineered for smooth operation and long service life. Splash oil lubrication helps protect internal components during continuous operation in challenging plant environments.

Model: ROOTS™ RCS J 832
Flow Range: Up to 5723 CFM
Max Δ Pressure: 10 psi
Max Δ Vacuum: 16″ Hg
Maximum RPM: 2250
Minimum RPM: 477
Max ΔT: 230°F
Inlet Connection: 14″
Discharge Connection: 12″
Shaft Diameter: 2.75″
Drive End Lubrication: Oil
Gear End Lubrication: Oil
Required Oil Horizontal Unit: 13.5 pints Gear End
Required Oil Horizontal Unit: 7 pints Drive End
Required Oil Vertical Unit: 9.5 pints Gear End
Required Oil Vertical Unit: 5 pints Drive End
Unit Weight: 2325 pounds (1057 kg)

ROOTS™ RCS J 832 Design and Features

WHISPAIR technology supports quieter airflow operation
Heavy-duty ductile iron impellers provide dependable airflow delivery
Precision alloy steel timing gears improve operational reliability
Cylindrical roller bearings handle demanding industrial conditions
Piston ring air seals help minimize internal leakage
Lip-type oil seals help keep lubricant separated from the air chamber
Splash oil lubrication supports long-lasting internal protection
High volumetric efficiency for continuous airflow applications
Available for horizontal and vertical installation requirements
Rugged grey iron construction built for industrial durability
