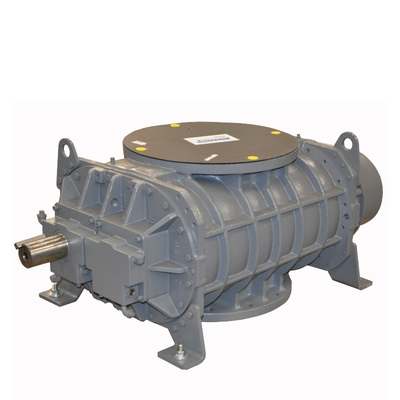

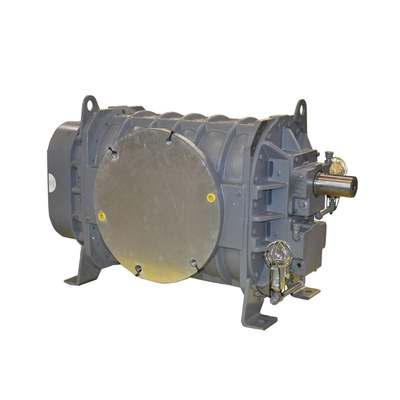

ROOTS™ RCS 827 Rotary Positive Displacement Blower
Model: RCS 827
The ROOTS™ RCS 827 rotary positive displacement blower is built for demanding industrial airflow systems that require dependable high-volume performance and flexible installation capability. Delivering airflow up to 4650 CFM, this heavy-duty unit combines integral shaft ductile-iron impellers with precision alloy-steel timing gears for smooth and efficient operation. Its rigid grey iron casing, advanced oil-free compression design, and center-timed rotation system support long service life in continuous industrial applications.
Technical Details
The ROOTS™ RCS rotary blower series utilizes carburized and precision-ground timing gears securely mounted to heavy-duty shafts for reliable synchronization under load.
Cylindrical roller bearings on the drive end, combined with balanced gear-end ball bearings, help maintain stable operation.
Splash oil lubrication protects internal components during extended industrial runtime.
Model: ROOTS™ RCS 827
Flow Range: Up to 4650 CFM
Max Δ Pressure: 13 psi
Max Δ Vacuum: 16″ Hg
Maximum RPM: 2250
Minimum RPM: 477
Max ΔT: 230°F (260°F with Oil Cooler)
Connection: 14″ Flange
Shaft Diameter: 2.75″
Drive End Lubrication: Oil
Gear End Lubrication: Oil
Required Oil Horizontal Unit: 4.8 pints Gear End
Required Oil Horizontal Unit: 8 ounces Drive End
Required Oil Vertical Unit: 2.06 pints Gear End
Required Oil Vertical Unit: 8 ounces Drive End
Unit Weight: 1600 pounds (727.3 kg)
ROOTS™ RCS 827 Design and Features
Center-timed operation supports smooth rotation in either direction
Heavy-duty alloy steel timing gears built for long-running industrial service
Cylindrical roller bearings on the drive end help manage demanding workloads
Gear end ball bearings promote stable and balanced performance
Piston ring air seals help control internal air leakage
Optional hydrodynamic seals available for added sealing protection
Splash oil lubrication system helps extend internal component life
Designed for strong volumetric efficiency in high airflow applications
Suitable for both horizontal and vertical mounting configurations
Rugged steel mounting feet allow easier installation flexibility in the field
