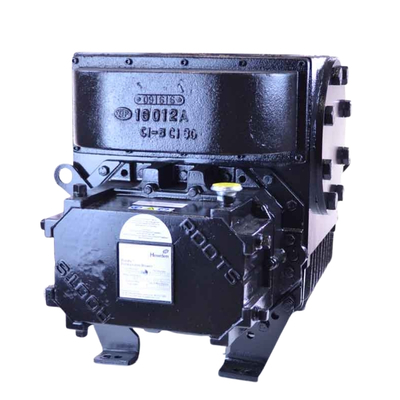

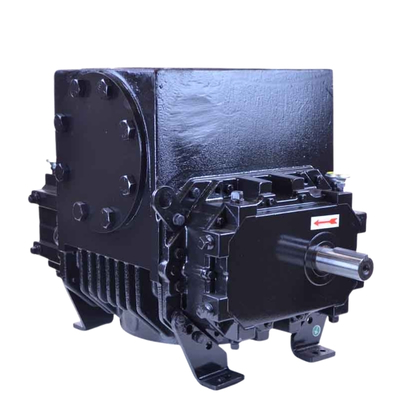

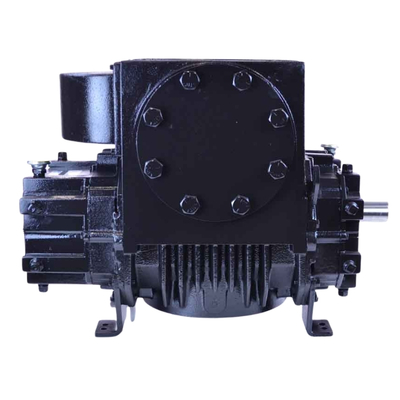

ROOTS 412 RAM DVJ WHISPAIR Dry Vacuum Blower

ROOTS™ 412 RAM DVJ WHISPAIR Dry Vacuum Blower

Model: 412 RAM DVJ WHISPAIR

The ROOTS™ 412 RAM DVJ WHISPAIR dry vacuum blower delivers high capacity thermal management for industrial processes operating under extreme vacuum conditions. Producing a strong volumetric flow up to 1038 CFM, this system utilizes a cooling air jet system that feeds atmospheric air straight into the grey iron cylinder. This continuous cooling action completely isolates the housing from extreme heat distortion, enabling smooth, uncompromised performance without water injection or external cooling accessories.

Key Specifications

Max Flow

1038 CFM

Max Vacuum

27″ Hg

Maximum Speed

4000 RPM

Manufacturer

Roots

IO&M Manuals

Download

Literature

Download

Technical Details

The ROOTS™ RAM DVJ WHISPAIR series is built to handle deep industrial vacuum depressurization while eliminating common heat-management struggles. Featuring specialized aluminum covers to shed heat, along with precision-balanced ductile iron impellers, this 575-pound unit maintains exceptional dimensional stability even during intensive continuous-run cycles.

Model: ROOTS™ 412 RAM DVJ WHISPAIR

Flow Range: Up to 1038 CFM

Max Δ Vacuum: 27″ Hg

Maximum RPM: 4000

Minimum RPM: 850

Max ΔT: 275°F

Inlet Connection: 6″ Flange

Discharge Connection: 6″ Flange

Jet Port Connection: 5″ Flange

Shaft Diameter: 1.5″

Drive End Lubrication: Oil

Gear End Lubrication: Oil

Required Oil Horizontal Unit: 55 ounces

Required Oil Vertical Unit: 27 ounces

Unit Weight: 575 pounds (261.4 kg)

ROOTS™ 412 RAM-DVJ Design and Features

Continuous dry vacuum operation reaching up to 27″ Hg in single-stage configurations

Specialized cooling jet plenum structure avoids extreme discharge temperature spikes

Wear-free architecture uses no sliding vanes, intricate valves, or fragile Teflon rings

Taper-mounted alloy steel timing gears provide secure, slipping-resistant synchronization

Heavy-duty cylindrical roller bearings resist strong structural forces during deep draws

Form-fitting piston ring air seals ensure minimal gas loss across headplate bores

Standard lip seals isolate the main chamber, with customizable mechanical seals available

Independent dual-end oil sumps utilize dependable splash lubrication

Interchangeable steel mounting feet support straightforward layout conversion on site

Warranty Information

12 months from original unit startup or 18 months from original shipment, whichever occurs first.
