Roots RAM-J Whispair Blowers Series
ROOTS™ RAM™ WHISPAIR™ (RAM-J) rotary blowers are engineered for reduced noise during operation and efficient airflow. Features Frame Sizes 404J thru 624J and available in multiple models. These rotary blowers feature "universal" mounting feet for flexible installation across four configurations.
View DetailsAvailable Models
7 Products

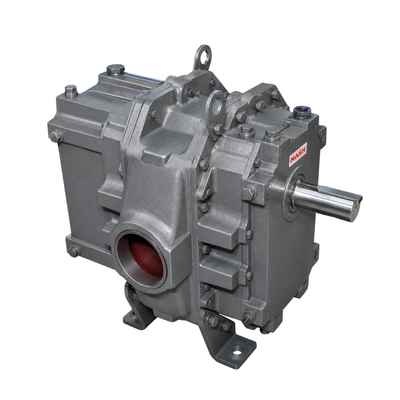

ROOTS™ RAM-GJ WHISPAIR Rotary Positive Displacement Blower - 404

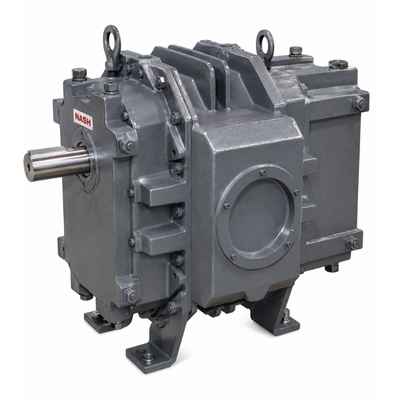

ROOTS™ RAM-GJ WHISPAIR Rotary Positive Displacement Blower - 406

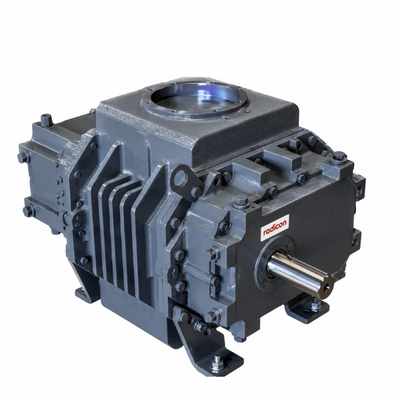

ROOTS™ RAM-GJ WHISPAIR Rotary Positive Displacement Blower - 409

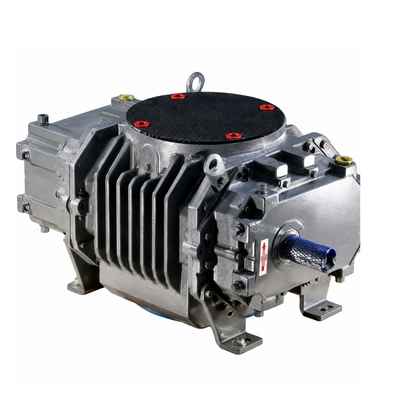

ROOTS™ RAM-GJ WHISPAIR Rotary Positive Displacement Blower - 412

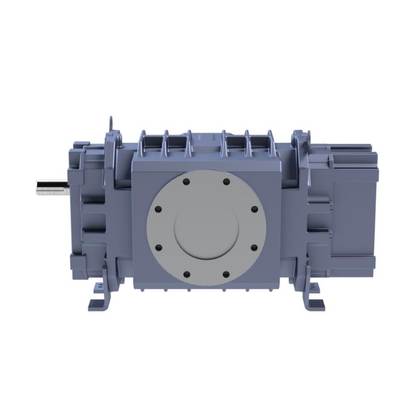

ROOTS™ RAM-GJ WHISPAIR Rotary Positive Displacement Blower - 418

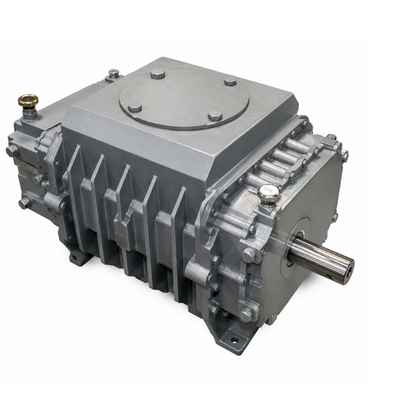

ROOTS™ RAM-GJ WHISPAIR Rotary Positive Displacement Blower - 616

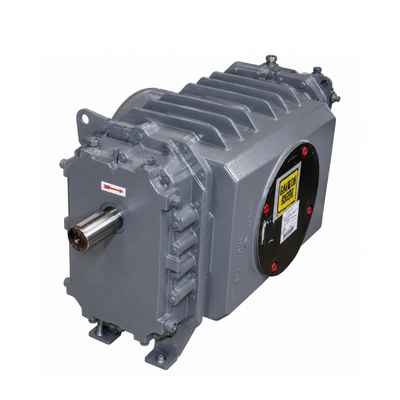

ROOTS™ RAM-GJ WHISPAIR Rotary Positive Displacement Blower - 624
Product Specifications
The Roots Ram blower WHISPAIR™ series is designed for high efficiency and reduced noise in demanding industrial environments. RAM-J units feature the original WHISPAIR jets, which control pressure equalization by feeding backflow in the direction of impeller movement. This design reduces noise and power loss while aiding rotation. The WHISPAIR feature results in uni-directional flow and drive shaft rotation.
Frame Sizes 404J thru 624J
All Roots whispair blower units are available in 7 different models and include detachable rugged steel mounting feet for adaptability to vertical or horizontal installations, with four drive shaft positions.
- Flow Rates: Up to 3550 ICFM (6031 mÂł/hr)
- Pressure: Up to 18 PSI (1241 mbar)
- Vacuum: Up to 16 INHgV (542 mbar)
- WHISPAIR™ jet design for pressure equalization and noise reduction
- Wraparound plenum design to reduce noise and power loss
- Uni-directional flow and drive shaft rotation
- Integral-shaft ductile iron impellers with involute profile
- Rigid one-piece grey iron casing and headplates
- Aluminum drive end cover and gear cover
- Carburized and ground alloy steel spur timing gears
- Cylindrical roller bearings
- Piston ring seals
- Lip-type oil seals
- Hydrodynamic seal
- Splash oil lubrication
- Thrust control
- Detachable mounting feet
- Universal mounting
- Wastewater treatment
- Pneumatic conveying
- Industrial air systems
- Chemical processing
- General air systems
