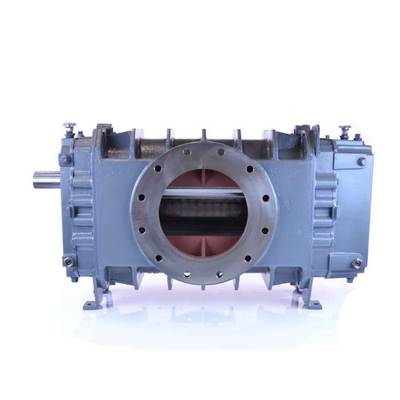

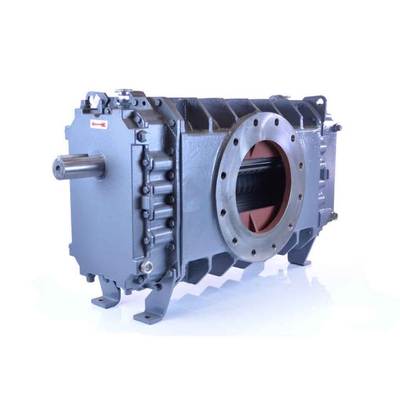

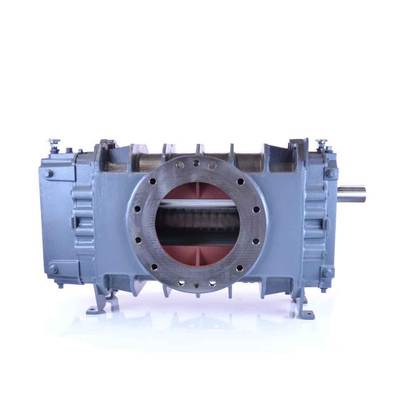

ROOTS™ RAM™ Frame 624 Rotary Positive Blower
The ROOTS™ RAM™ 624 stands as the flagship unit of the RAM™ Blowers series — the most powerful in the lineup spanning Frame 404 through 624 — purpose-built for the highest-volume industrial airflow requirements. Delivering up to 3244 CFM, operating pressures to 10 PSI, vacuum to 16″ Hg, and speeds to 3000 RPM, this heavy-duty rotary positive displacement blower features a 10″ FLG connection, 2″ shaft diameter, and a robust unit weight of 765 pounds. Backed by Roots' CNC manufacturing precision, alloy steel timing gears, cylindrical roller bearings, piston ring air seals, and splash oil lubrication, the RAM 624 is engineered to sustain peak efficiency, minimize operating temperatures, and deliver the dependable long-term performance that large-scale industrial operations demand.
Technical Details
RAM Frame 624 Design & Construction Features
Warranty Information
The ROOTS™ RAM™ 624 Rotary Positive Displacement Blower is backed by a 24-month warranty from the date of original unit start-up, or 30 months from the date of original shipment — whichever comes first.
