Roots™ RCS Series Blowers

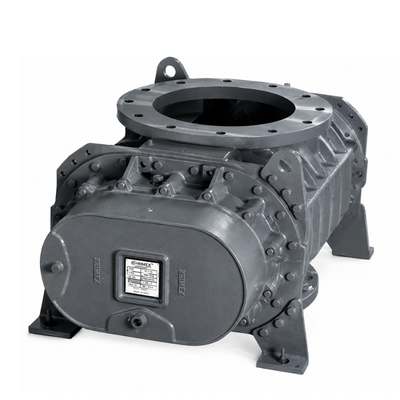

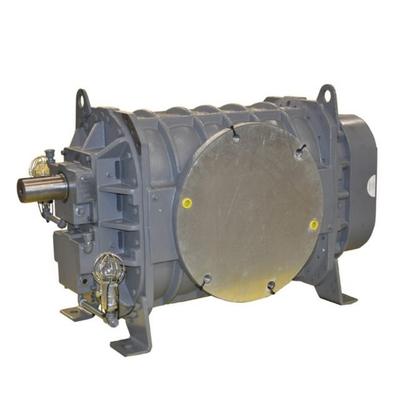

Roots™ RCS rotary positive displacement blowers are available in frame sizes 817, 824, and 827, with three models designed for heavy-duty air and gas handling. Units feature detachable mounting feet for installation in multiple configurations.
View Details
Product Specifications
Roots RCS Series Rotary Blowers
The rotary positive displacement blowers in the RCS series are designed for high-capacity industrial applications requiring reliable and continuous operation. These units incorporate piston ring seals to reduce leakage through shaft openings and lip-type seals to prevent lubrication from entering the air chamber.
Constructed with integral-shaft ductile iron impellers featuring an involute profile, the RCS series ensures efficient airflow and durability. The casing, headplates, gear cover, and end cover are manufactured from grey iron, while carburized and ground alloy steel spur timing gears are securely taper-mounted on the shafts.
Frame Sizes: 817 thru 827
Highlights
- Flow Rates: Up to 6300 ICFM (10710 mÂł/hr)
- Pressure: Up to 18 PSI (1241 mbar)
- Vacuum: Up to 16 INHgV (539 mbar)
All standard units are center-timed to allow rotation in either direction. RCS series units incorporate detachable steel mounting feet to permit adaptability to either vertical or horizontal installation.
Design
- Heavy-duty one-piece grey iron casing for structural rigidity
- Grey iron headplates, gear cover, and end cover construction
- Detachable rugged steel mounting feet for in-field adaptability
- Configurable mounting for vertical or horizontal installations
- Four mounting configurations are supported
- Extended shaft options for side, top, or bottom drive arrangements
- Designed for high-capacity air and gas handling applications
- Available in standard and DSL configurations
Product Features
- Integral-shaft ductile iron impellers with involute profile
- Carburized and ground alloy steel spur timing gears
- Cylindrical roller bearings on the drive end and ball bearings on the gear end
- Piston ring air seals
- Lip-type oil seals
- Splash oil lubrication
- Thrust control
- High volumetric efficiency performance
- Center-timed design
Applications
- Wastewater treatment
- Pneumatic conveying
- Industrial air systems
- Chemical processing
- General air systems
Warranty
Twenty-four months from startup or thirty months from original shipment date, whichever occurs first.
