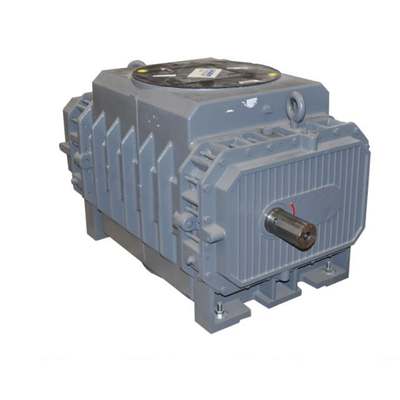

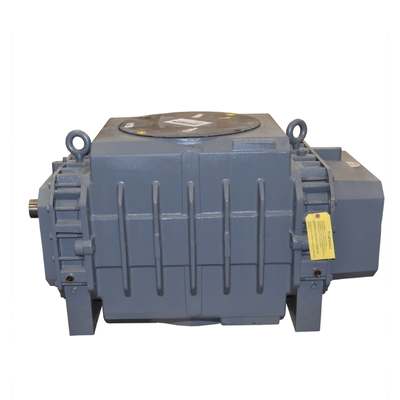

ROOTS™ RCS-J 826 WHISPAIR Rotary Positive Displacement Blower
Model: RCS-J 826 WHISPAIR
The ROOTS™ RCS J 826 WHISPAIR blower delivers powerful airflow performance for demanding industrial systems that require quieter and more efficient operation. Built to handle airflow up to 4770 CFM, this heavy-duty unit combines durable ductile-iron impellers with advanced WHISPAIR airflow technology to help reduce noise and improve operating efficiency. Its rugged grey iron housing, precision timing gears, and splash-lubricated components are engineered for dependable long-term industrial service.
Technical Details
ROOTS™ RCS-J 826
Flow Range: Up to 4770 CFM
Max Δ Pressure: 12 psi
Max Δ Vacuum: 16″ Hg
Maximum RPM: 2250
Minimum RPM: 477
Max ΔT: 230°F
Inlet Connection: 12″
Discharge Connection: 12″
Shaft Diameter: 2.75″
Drive End Lubrication: Oil
Gear End Lubrication: Oil
Required Oil Horizontal Unit: 13.5 pints Gear End
Required Oil Horizontal Unit: 7 pints Drive End
Required Oil Vertical Unit: 9.5 pints Gear End
Required Oil Vertical Unit: 5 pints Drive End
Unit Weight: 2075 pounds (943 kg)
ROOTS™ RCS J 826 Design and Features
WHISPAIR technology significantly lowers running noise for a quieter workspace
Heavy-duty ductile iron impellers keep your system's air moving smoothly
Tough alloy steel gears ensure perfect internal timing and synchronization
Extra-capacity cylindrical roller bearings effortlessly handle heavy industrial workloads
Precision piston ring seals keep air from escaping internally during compression
Lip-type oil seals lock out lubricants to protect the air chamber from contamination
Dual-end splash oil lubrication keeps parts running dependably over the long haul
High volumetric efficiency ensures steady, continuous output for demanding setups
Flexible casing designs adapt easily to either horizontal or vertical plumbing layouts
A solid grey iron body offers the rugged durability needed in harsh plant environments
