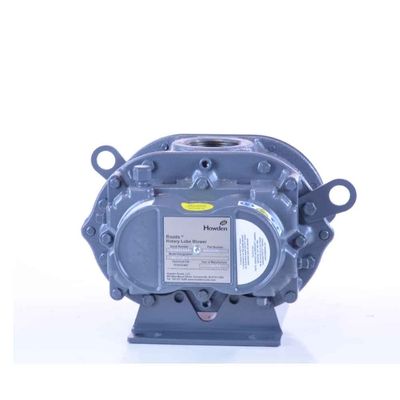

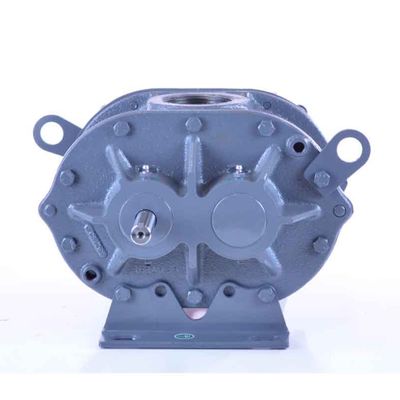

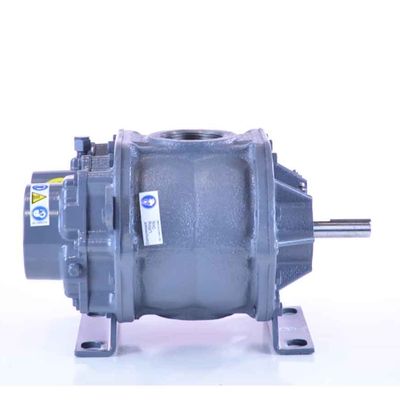

ROOTS™ Universal 36 URAI

Model: 36 URAI

The ROOTS™ Universal RAI blower Model 36 URAI incorporates precision-machined cast iron involute impellers with carburized and ground alloy steel spur timing gears secured to steel shafts using taper mounts and locknuts for accurate rotor synchronization. Oversized anti-friction bearings with a cylindrical roller drive-end bearing support continuous-duty operation, while detachable steel mounting feet allow four-position shaft configuration for vertical or horizontal installation.

Key Specifications

Max Flow

330 CFM

Max Pressure

7 psi

Max Vacuum

15" Hg

Maximum RPM

3600 RPM

Minimum RPM

1090 RPM

Manufacturer

Roots

IO&M Manuals

Download

Literature

Download

Technical Details

Universal RAI Blower

Roots Blower Model 36 URAI

Flow Range: to 330 CFM

Max Δ Pressure: 7 psi

Max Δ Vacuum: 15″ Hg

Max ΔT: 225˚F

Connection Size: 2.5″ FPT

Shaft Diameter: 0.75″

Drive End Lubrication: Grease

Gear End Lubrication: Oil

Required Oil – Horizontal Unit: 10.5 ounces (0.31 litres)

Required Oil – Vertical Unit: 8.5 ounces (0.25 litres)

Shipping Container: Cardboard Box with formed foam

36 URAI Blower Design & Construction Features

Steel detachable mounting feet

Rigid one-piece cast iron casing

Anti-friction bearings

Thrust control design

Splash oil lubricated spur timing gears

Standard pipe size connections

Balanced precision-machined bi-lobe impellers

Ground steel shafts

Cast iron involute impellers

Carburized and ground alloy steel timing gears

Cylindrical roller bearing for V-belt load support

Four-position drive shaft adaptability

Vertical and horizontal mounting capability

Warranty Information

ROOTS™ Universal RAI® industrial blowers are backed by a two-year warranty with an additional six months for shipping and construction where applicable. Roots synthetic oil is recommended for extended lubricant life and dependable blower operation.
