Roots™-FLO Blower Series
ROOTS-FLO® Positive Displacement Blowers come in 4 different models and are designed to be drop-in replacements for the DuroFlow® 45 series and Big Jack Inc. A4 series units. These blowers are mostly used for the pneumatic conveying of grain and equivalent products.
View Details
Product Specifications
The positive displacement blowers in the Roots-FLO series are engineered for durability and efficient performance in industrial applications. These units feature piston ring seals to reduce leakage through shaft openings in the headplates and lip-type seals to prevent lubrication from entering the air chamber.
The basic construction includes a ribbed cast iron casing with rigid headplates, carburized and ground alloy steel spur timing gears secured to steel shafts with taper mounting and locknut, and cast iron involute impellers. Oversized anti-friction bearings are used, including a cylindrical roller bearing at the drive shaft to withstand V-belt pull.

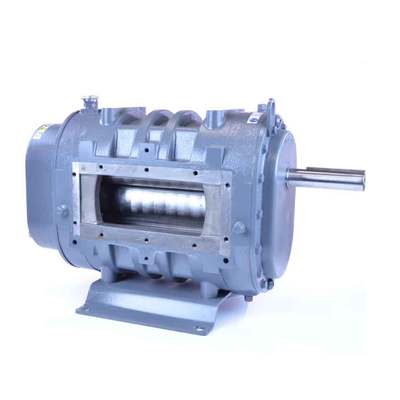

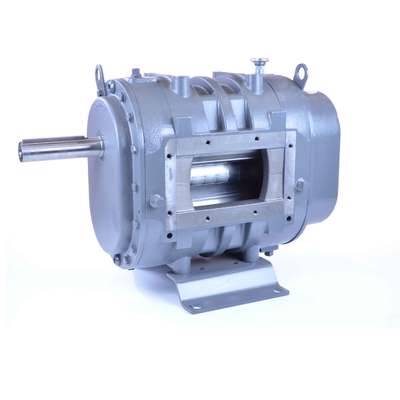

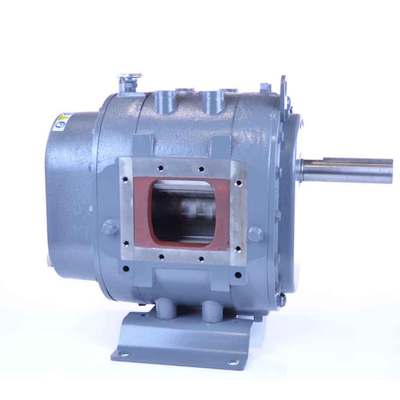

Frame Sizes 404, 406, 409, and 412
- Flow Rates: Up to 1200 CFM
- Pressure: Up to 15 PSIg
- Vacuum: Up to 16" Hgg (Dry)
These positive displacement blowers are designed for consistent airflow and reliable operation in pneumatic conveying and industrial air systems.
- Ribbed cast iron casing engineered for structural strength and vibration resistance
- Rigid headplate construction to maintain precise internal clearances
- One-piece housing design for durability in continuous-duty operation
- Detachable rugged steel mounting feet for in-field adaptability
- Configurable mounting for both vertical and horizontal installations
- Taper-mounted shaft configuration for secure power transmission
- Designed as a drop-in replacement for DuroFlow® 45 series and Big Jack Inc. A4 units
- Engineered for pneumatic conveying applications, especially grain and similar materials
- Optimized internal geometry to support stable airflow and consistent performance
- Impellers
- Bearings
- Gears
- Seals
- Pneumatic conveying systems
- Grain handling
- Bulk material handling
- Industrial air systems
12 months from startup or 18 months from the original purchase date, whichever occurs first.
