Roots Universal RAI-G Gas Blowers

The Roots Universal RAI-G™ gas blowers by ACFM are available in 12 different models and are specifically designed with mechanical seals for safe and efficient gas handling applications. They feature purge capabilities and universal mounting feet for flexible installation across four different configurations, and minimize leakage.

Available Models

12 Products

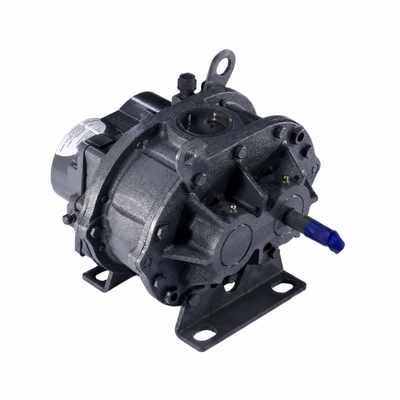

ROOTS™ 32 Universal URAI-G

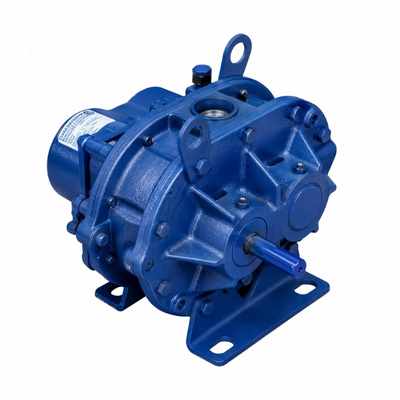

ROOTS™ 33 Universal URAI-G

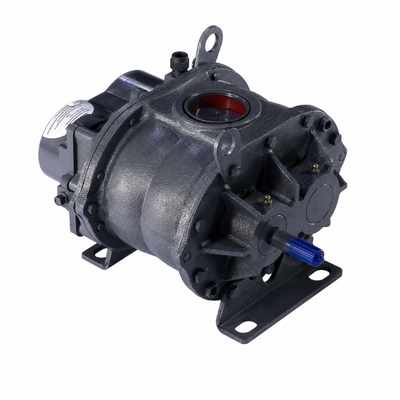

ROOTS™ 36 Universal URAI-G

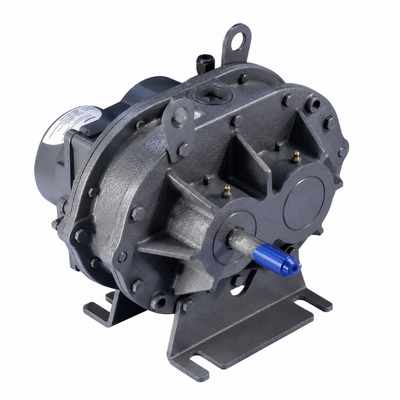

ROOTS™ 42 Universal URAI-G

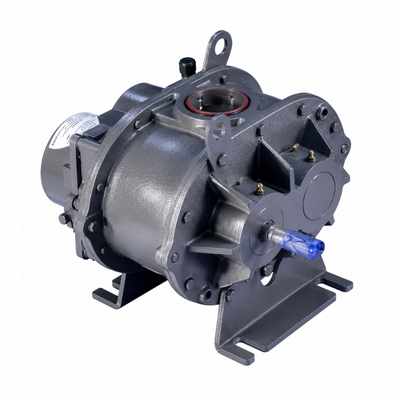

ROOTS™ 45 Universal URAI-G

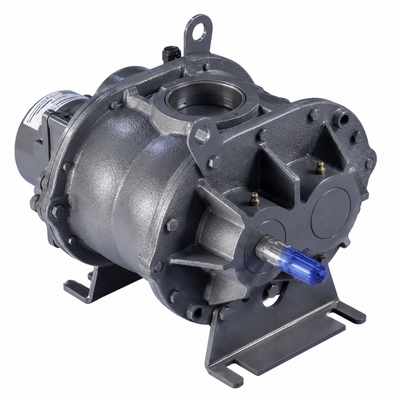

ROOTS™ 47 Universal URAI-G

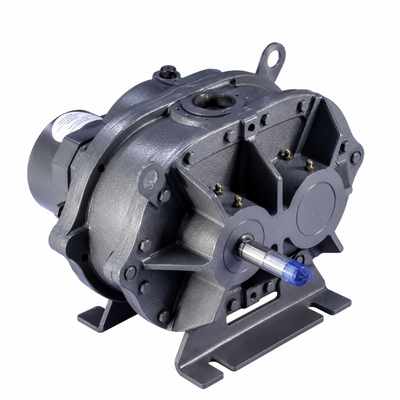

ROOTS™ 53 Universal URAI-G

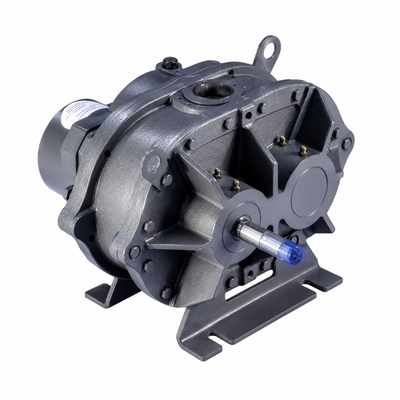

ROOTS™ 56 Universal URAI-G

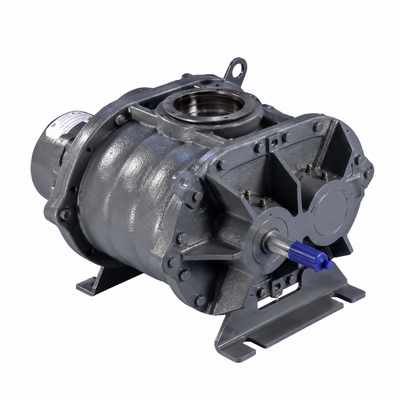

ROOTS™ 59 Universal URAI-G

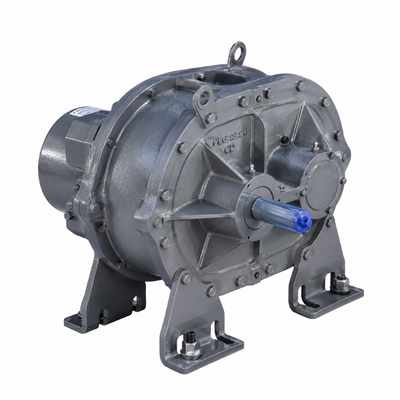

ROOTS™ 65 Universal URAI-G

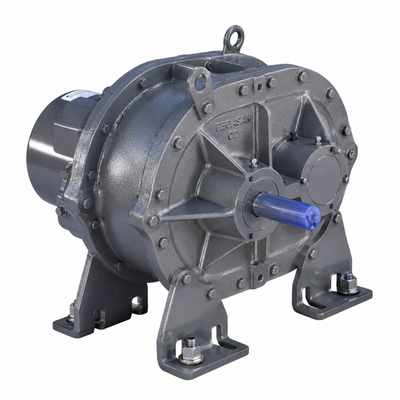

ROOTS™ 68 Universal URAI-G

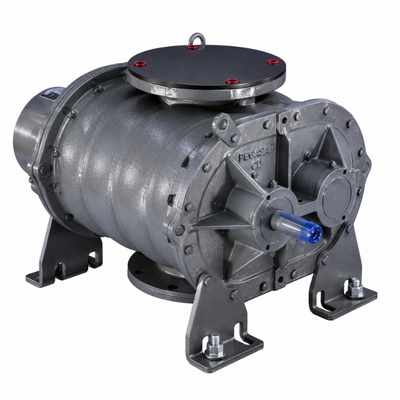

ROOTS™ 615 Universal URAI-G

Product Specifications

Roots Universal RAI-G Gas Blowers −

All models in our Universal RAI Blower gas series are designed with mechanical seals and Viton™ O-rings to support safe and efficient gas handling. The seal system includes provisions for purge gas in the headplates to help mitigate leakage and meet stringent safety requirements. These units feature grease lubrication on the drive end and splash oil lubrication on the gear end for reliable operation.

Frame Sizes: 32GJ thru 615GJ

These blowers are equipped with detachable steel mounting feet, allowing installation in vertical or horizontal configurations with four drive shaft positions (top, bottom, right, or left). All units are center-timed, enabling operation in either direction.

Highlights −

Flow Rates: 16 – 1610 ICFM (27 – 2735 m³/hr)
Pressure: Up to 15 PSI (1034 mbar)
Vacuum: Up to 16 INHgV (539 mbar) (Dry)
Horsepower: 0.2 – 60 BHP (0.15 – 45 kW)

With a rugged construction and engineered sealing system, these blowers provide consistent performance in critical gas applications.

Design & Features −

Mechanical seals with purge capability
Viton™ O-rings for enhanced sealing performance
Detachable steel mounting feet for flexible installation
Universal mounting design (vertical or horizontal configurations)
Four drive shaft positions: top, bottom, right, or left
Center-timed design for bi-directional operation
Grease lubrication on the drive end
Splash oil lubrication on the gear end
Rigid one-piece cast iron casing
Carburized and ground alloy steel spur timing gears
Anti-friction bearings with cylindrical roller bearings on the drive shaft
Straight, precision-machined two-lobe impellers
Ground steel shafts
Thrust control for stable operation
Connections in standard pipe sizes

Applications −

Gas handling systems
Chemical and petrochemical processing
Vapor recovery systems
Industrial air and gas transfer
Wastewater treatment
General industrial applications

Important Safety and Operational Considerations

Roots URAI-G gas blowers are designed for handling gases, including potentially hazardous gases such as combustible or toxic gases. It is the responsibility of the system designer and end user to ensure proper safeguards are implemented for safe installation, operation, and maintenance.

These blowers utilize mechanical seals instead of typical lip seals to minimize gas leakage into vented oil-bearing chambers. Some level of leakage may still occur, and purge systems can be used between the headplate seal and mechanical seals to help mitigate this.

System design and operation must comply with all applicable codes and standards. The manufacturer is not responsible for the effects of corrosion, erosion, or material build-up. Refer to the instruction manual for complete operational guidance.
