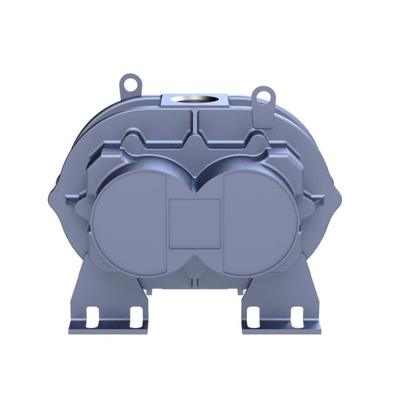

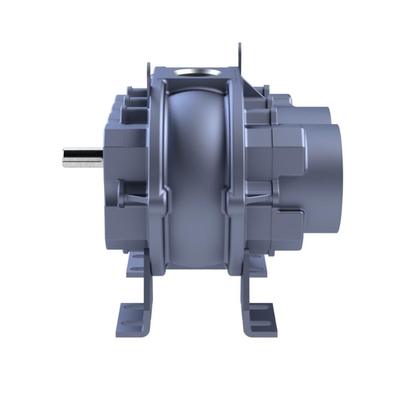

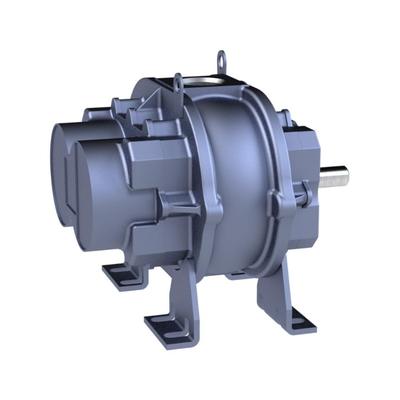

ROOTS™ 65 Universal RAI DSL

Model: 65 URAI DSL

The ROOTS™ 65 Universal RAI DSL blower delivers up to 526 CFM airflow, 15 PSI pressure, 16" Hg vacuum, and 2350 RPM performance for continuous-duty industrial applications. Engineered with a rigid cast iron casing, 1.375″ ground steel shafts, precision bi-lobe impellers, dual splash oil lubrication, oversized anti-friction bearings, and Howden’s figure-eight gearbox design, it provides optimized oil distribution, thermal stability to 250°F, and long-term operational reliability.

Key Specifications

Max Flow

526 CFM

Max Pressure

15 PSI

Max Vacuum

16" Hg

Maximum RPM

2350 RPM

Minimum RPM

636 RPM

Maximum Temperature

250˚F

Manufacturer

Roots

IO&M Manuals

Download

Literature

Download

Technical Details

Universal RAI DSL Blower

ROOTS™ Model 65 URAI DSL

Model: Roots Model 65 URAI DSL

Flow Range: to 526 CFM

Max Δ Pressure: 15 psi

Max Δ Vacuum: 16″ Hg

Max ΔT: 250˚F

Connection Size: 3″ FPT

Shaft Diameter: 1.375″

Drive End Lubrication: Oil

Gear End Lubrication: Oil

Required Oil Gear End Horizontal Unit: 52.1 ounces

Required Oil Drive End Horizontal Unit: 31 ounces

Required Oil Gear End Vertical Unit: 28.3 ounces

Required Oil Drive End Vertical Unit: 16 ounces

Unit Weight: 250 pounds (113.6 kg)

65 Universal RAI DSL Blower Design & Construction Features

Steel detachable mounting feet

Rigid one-piece cast iron casing

Anti-friction bearings

Splash oil lubricated spur timing gears

Splash oil lubricated drive end bearings

Balanced precision-machined bi-lobe impellers

Ground steel shafts

Cylindrical roller bearing for V-belt loads

Dual shaft-mounted oil slingers

Howden exclusive figure-eight gearbox design

3/8″ oil level sight glasses

Standard pipe size connections

Accessories

Available accessories include driver packages, inlet and discharge silencers, relief valves, inlet filters, check valves, extended bases, V-belt drives, flexible couplings, drivers, and drive guards.

Warranty Information

Roots URAI DSL blowers are backed by a 2-year warranty with an additional 6 months covering shipping and construction where applicable. Roots synthetic lubricants are recommended to maximize lubricant life and blower reliability. Oil sight glasses are provided for accurate oil level monitoring during operation.
